ECS System Simulation - Architecture and Performance Optimization from the Early Phases of the System Design
The trend today in aircraft thermal design leans towards electronic system integration requiring higher heat densities and a more frequent use of composite primary structures. All these factors require thermal management and architecture design to achieve a suitable robustness, even in the early design stages. The thermal architecture should be able to prevent the risks of damage to temperature-sensitive equipment and limit the expensive overdesign of aircraft systems.
The optimization platform helped us reduce pressure loss and noise level to the minimum.
One of the systems considered in the ECS design at Alenia Aermacchi is the air conditioning pack and distribution system. The air, supplied from the engine compressor, is processed in the conditioning pack before being distributed to the fuselage compartments. Enhancing the efficiency of the thermal architecture implies several constraints and requirements relating to standards-compliance and safety regulations. Designers must adhere to given A/C configurations and maintain suitable thermo-acoustic insulation and temperature levels for both the cabin and cockpit.

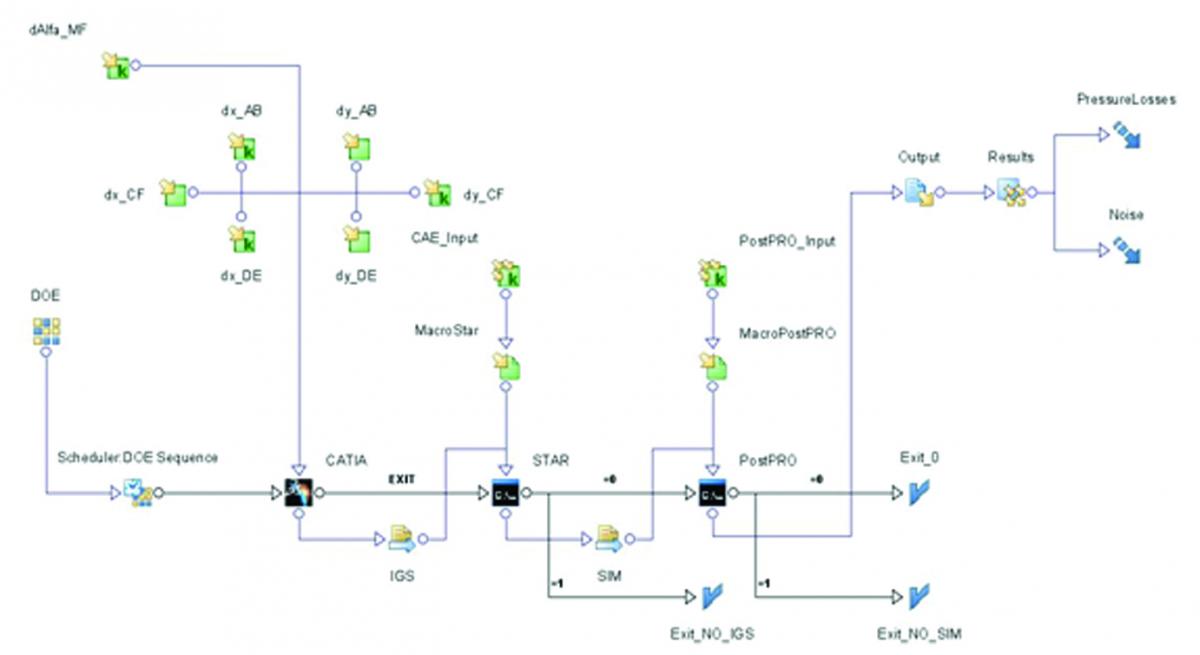

First, engineers at Alenia Aermacchi used the TPM approach to compare the performance of two alternative architectures, preferring a parallel layout composed of an underfloor and a low pressure air line fed from the mixing chamber and distributing the airflow in parallel through a set of risers. Next, after building the model for the selected architecture and its subsystems in LMS.Amesim, the workflow for the air nozzle shape optimization was built in modeFRONTIER.“The optimization platform helped us reduce pressure loss and noise level to the minimum,” says Gaetano Mirra (CTO, General Systems - ECS and Ice protection specialist at Alenia Aermacchi).
We found the best configurations possible for the nozzle shape and refined the thermal architecture design, further enhancing passenger comfort in terms of cabin thermal environment.
modeFRONTIER automation and integration capabilities enabled us to simultaneously consider the fluid dynamic and acoustic analysis and easily handle the data flow including Catia, StarCCM+ans PostPRO simulations in a unique environment” continued Mirra. “We found the best configurations possible for the nozzle shape and refined the thermal architecture design, further enhancing passenger comfort in terms of cabin thermal environment."
